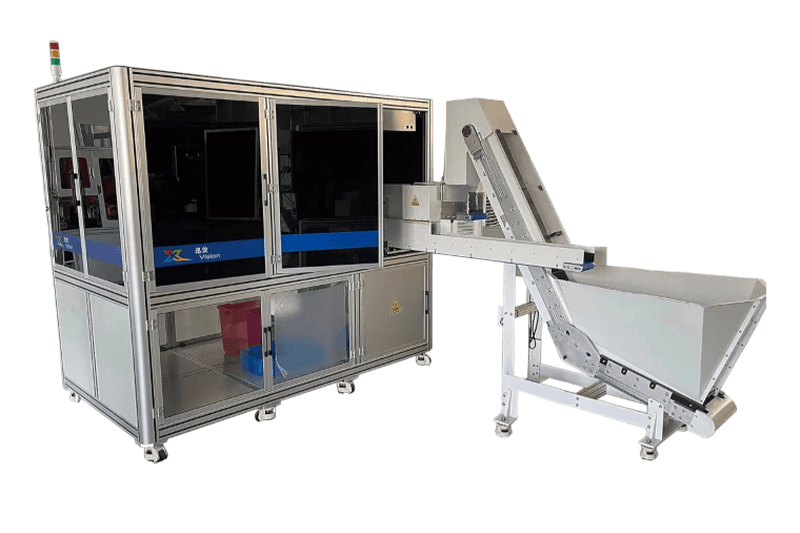

AI Double-Disc Optical Sorting Machine for Rubber Parts

Engineered for high-volume O-rings and rubber seals, this dual-glass-dial system features an advanced AI deep-learning algorithm. It delivers critical 360° surface defect detection (flashing, short shots, parting line burrs) and full dimensional measurement with zero-defect assurance.

We have archived 780+ raw testing clips for various components.

This next-generation sorting system integrates proprietary AI deep learning inspection nodes with sub-pixel dimensional optical metrology. Engineered to surpass the physical limits of traditional contrast-based cameras, it dynamically isolates microscopic superficial anomalies, hidden structural deformations, and critical geometric deviations in real-time, executing uncompromised sorting accuracy under demanding cycle times.

Specifications

  • Outer Diameter Range: 5 – 40 mm / 40 – 105 mm (Customizable based on component dimensions).
  • Thickness Range: 1 – 8 mm (Customizable based on component dimensions).
  • Repeatability: ≤ ±0.01 mm.
  • Detection Speed: 2 – 12 PCS/s (Depending on variable component size).
  • Dimensions: Outer Diameter, Inner Diameter, Side Diameter, Thickness.
  • Surface Appearance Defects: Burrs, Lack of Material, Flow Marks, Mold Dirt, Sticky Skin, Breakage, Pitting, Cracks, etc.

Camera Arrangement

  • Top & Bottom Cameras * 2: Detect appearance defects on the upper and lower surfaces of the product.
  • Size Camera * 1: Measure product sizes and inner diameters.
  • Lateral Outer Camera (Optional 4 or 8 Cameras): Detect the appearance defects on the external side of the product.
  • Lateral Inner Camera (Optional 4 or 8 Cameras): Detect the appearance defects on the inner side of the product.
  • Thickness Camera * 1 (Optional): Measure the thickness of the product.

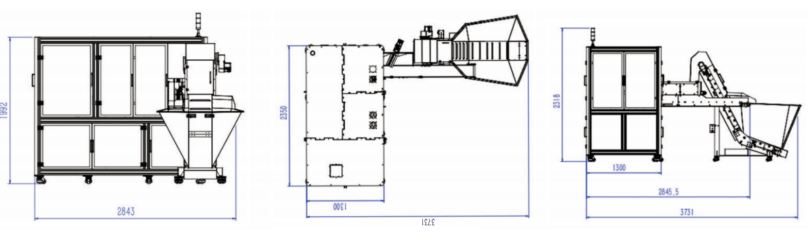

Machine Structure Diagram

Mechanical dimensional drawing and installation footprint schematic for XX AI Vision optical sorting machine.

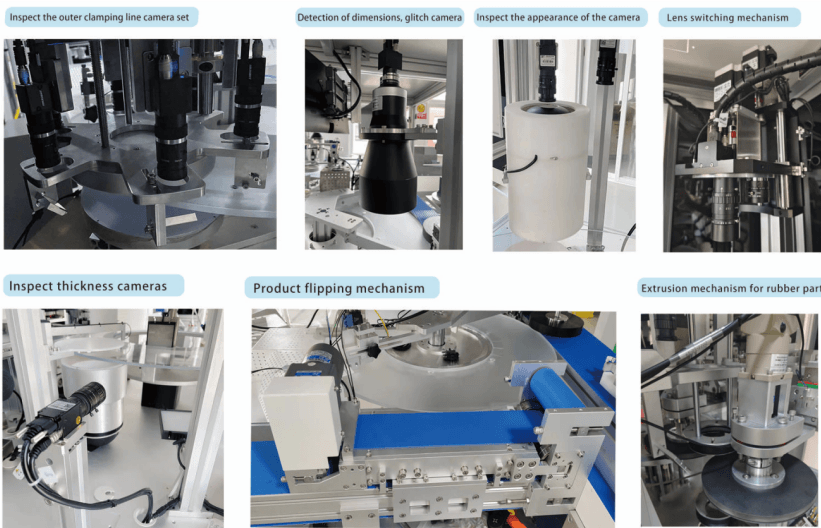

Machine Details Display

Multi-camera vision inspection array on AI double-disc optical sorting machine executing high-precision sub-pixel measurement - XX AI Vision
Quality guarantee and FAT inspection certificate icon for advanced optical sorting machines by XX AI Vision

Quality Guarantee & FAT

Each AI vision system undergoes rigorous calibration prior to delivery. We provide Factory Acceptance Test (FAT) via remote HD video or on-site visits to verify that all custom inspection models meet your exact specifications.

Global engineering support, on-site installation, and technical operational training icon from XX AI Vision specialists

Global Installation & Training

Our senior automation architects provide on-site deployment, optical alignment, and system integration. We deliver comprehensive operational training for your teams to ensure smooth algorithm adjustments.

Industrial AI deep learning neural network calibration and machine vision sorting system predictive maintenance icon by XX AI Vision

Predictive Maintenance & Audits

To maintain continuous manufacturing uptime, we perform regular remote system audits and network optimization, preventing downtime on high-speed production lines.

Precision hardware spare parts and critical optical components global inventory icon for XX AI Vision automated sorting machine

Precision Spare Parts

We maintain a fully stocked inventory of critical optical components and mechanical spares, ensuring rapid replacements and absolute dimensional repeatability.

Tailored heavy-duty industrial packaging and global logistics protection icon for XX AI Vision high-speed cameras and sensitive lenses

Tailored Packaging & Logistics

We engineer heavy-duty industrial packaging designed to safeguard highly sensitive lenses, high-speed cameras, and precision sensors during global transit.

Comprehensive 12-month industrial system architecture warranty and specialized technical support icon from XX AI Vision

Comprehensive Warranty

Our advanced systems are backed by a structured 12-month warranty covering core architecture and processing mainframes, supported by our expert technical team.
