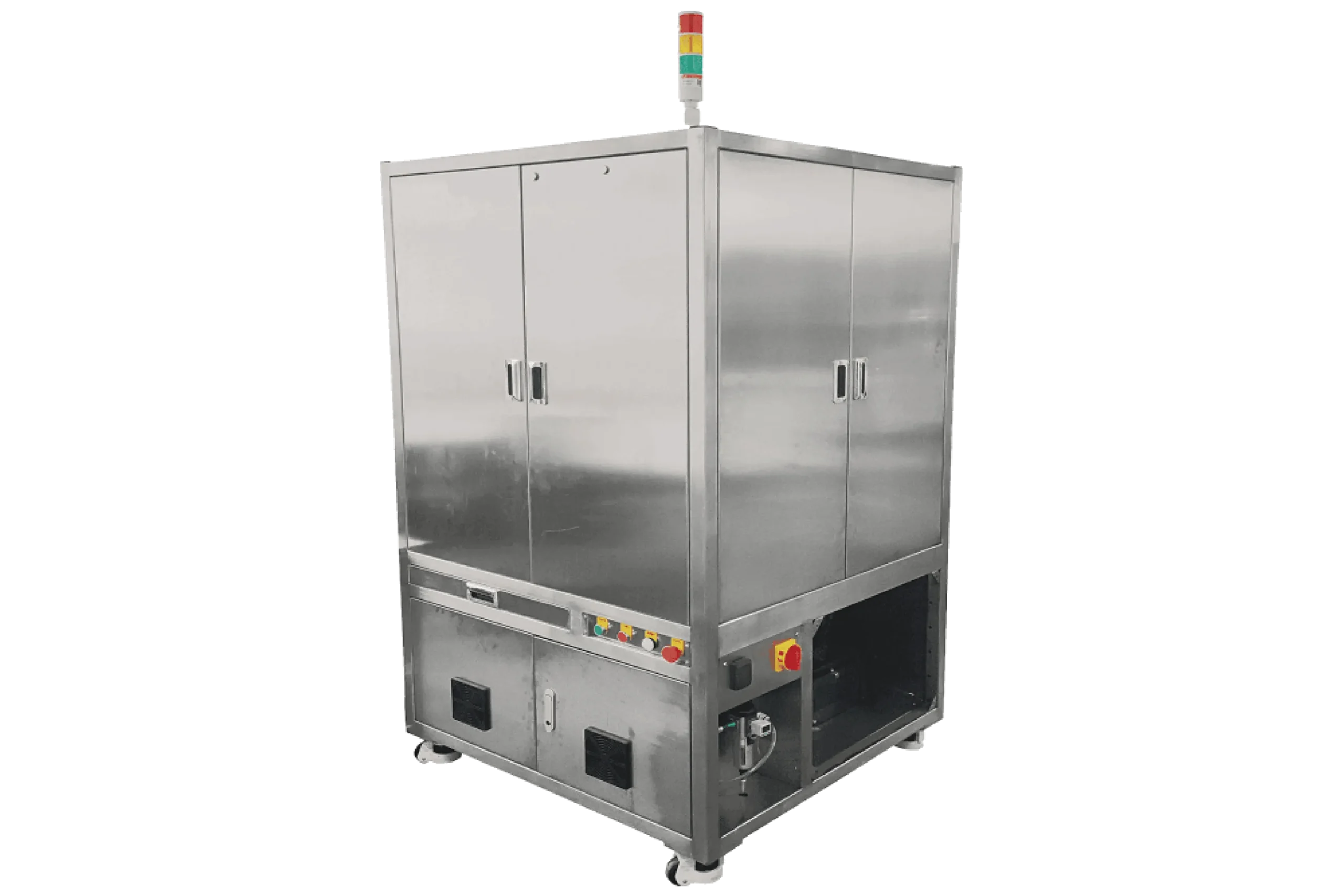

Automated Vision Sorting Machine for the Food Industry
Specially engineered for the agricultural and food sector, this high-throughput optical sorter utilizes advanced vision technology to inspect various nuts, melon seeds, and dried foods. It instantly eliminates shell fragments, discolored defects, moldy pieces, and foreign contaminants at full production speeds.
Live Demonstration: Watch Our Automated Vision Sorting Machine for the Food Industry in Action
We have archived 780+ raw testing clips for various components.
Product Description
This next-generation sorting system integrates proprietary AI deep learning inspection nodes with sub-pixel dimensional optical metrology. Engineered to surpass the physical limits of traditional contrast-based cameras, it dynamically isolates microscopic superficial anomalies, hidden structural deformations, and critical geometric deviations in real-time, executing uncompromised sorting accuracy under demanding cycle times.
Key Features
- Food-Safe AI Sorting Intelligence: Powered by deep learning models pre-trained on millions of agricultural profiles to dynamically isolate mold, shell fragments, and subtle color defects under variable illumination.
- Hygiene-First Sanitary Design: Engineered with open-frame architecture and washdown-friendly materials to prevent bacterial growth and cross-contamination.
- Ultra-High Throughput & Dynamic Ejection: Equipped with multi-channel air jet valves running at ultra-fast speeds to guarantee massive production volume with minimal good-product carryover.
- Real-Time Foreign Body Detection: High-speed multispectral cameras separating dangerous glass, plastics, and stones from the product stream instantly
Specifications
- Model Type: XX-JC05-C
- Machine Size: 1200 * 1200 * 1817 mm
- Camera Capacity: 1 – 12 Channels
- Glass Dish Size: 800 mm
- Inspection Stations & Configurations:
- Top Camera * 1
- Bottom Camera * 1
- Lateral Camera * 6-8
- Size Camera * 1
- Thickness Camera * 1
Food Grade Material
- Fully compliant with US FDA regulations and EU EC 1935/2004 food contact standards. All product-contact components utilize sanitary-grade AISI 304/316 stainless steel with specialized anti-stick surface finishes to prevent debris accumulation and ensure effortless cleanability.
Detection Contents
- Detectable Defects:Mildew, blackness, moth-eaten, broken skin, breakage, deformity, size, maturity grade, etc.

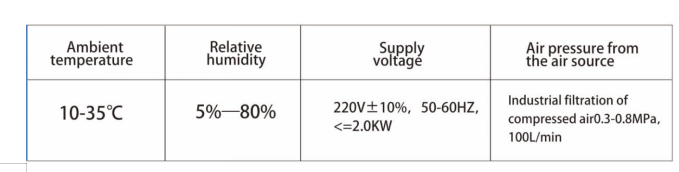

Operating Environment
- Ambient Temperature: 10 – 35 °C
- Relative Humidity: 5% – 80% (Non-Condensing)
- Supply Voltage: 220V ±10%, 50 – 60 Hz, ≤2.0 kW
- Air Source Requirements: Industrial Filtration of Compressed Air (0.3 – 0.8 MPa), Flow Rate ≥100 L/min

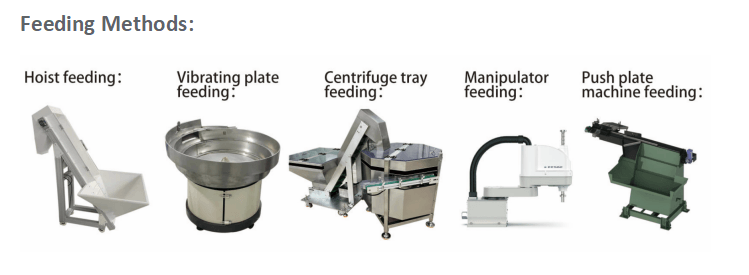

Feeding Methods & Automation

- Optional Automated Feeding Systems & Options:
- Hoist Feeding: Food-grade vertical bucket elevator utilizing sanitary FDA-approved materials for high-capacity, gentle bulk product transport.
- Vibrating Feed Shunt: Electro-magnetic vibrating feeding trays engineered for uniform, single-layer spreading of nuts and seeds onto the sorting belt.
- Centrifugal Alignment Tray: Optimized for non-rolling food components to ensure smooth, high-speed alignment without friction-induced product damage.
- Manipulator Pick-and-Place: Optional robotic arm integration providing automated sorting or packaging orientation for fragile, premium baked goods.
- High-Speed Chute / Belt Delivery: Precision-engineered gravity chutes or continuous conveyor arrays stabilizing food components during high-velocity optical pass-through.
Top Service

Quality Guarantee & FAT
Each AI vision system undergoes rigorous calibration prior to delivery. We provide Factory Acceptance Test (FAT) via remote HD video or on-site visits to verify that all custom inspection models meet your exact specifications.

Global Installation & Training
Our senior automation architects provide on-site deployment, optical alignment, and system integration. We deliver comprehensive operational training for your teams to ensure smooth algorithm adjustments.

Predictive Maintenance & Audits
To maintain continuous manufacturing uptime, we perform regular remote system audits and network optimization, preventing downtime on high-speed production lines.

Precision Spare Parts
We maintain a fully stocked inventory of critical optical components and mechanical spares, ensuring rapid replacements and absolute dimensional repeatability.

Tailored Packaging & Logistics
We engineer heavy-duty industrial packaging designed to safeguard highly sensitive lenses, high-speed cameras, and precision sensors during global transit.

Comprehensive Warranty
Our advanced systems are backed by a structured 12-month warranty covering core architecture and processing mainframes, supported by our expert technical team.
